Mahsulot tarkibi

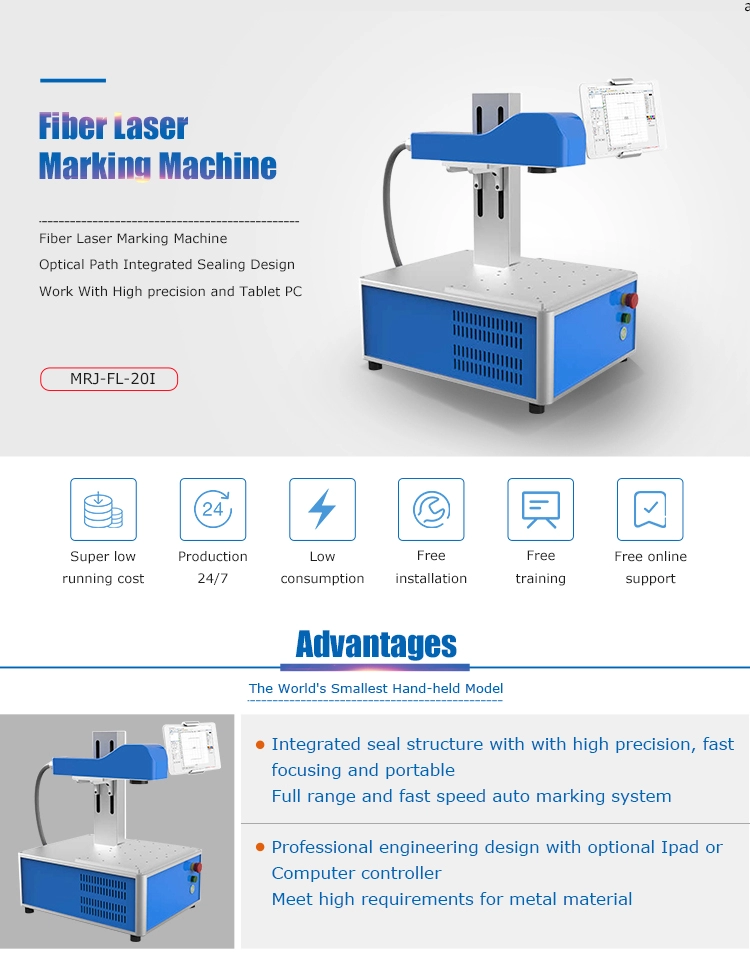

Model | MRJ-FL-20I | MRJ-FL-30I | MRJ-FL-50I |
Lazer quvvat | 20W | 30W | 50W |
Lazer to'lqin uzunligi | 1064nm | 1064nm | 1064nm |
Kiruvchi sifat | M² <> | M² <> | M² <> |
Takrorlash chastotasi | 20-80KHz | 30-80KHz | 50-120KHz |
Belgini belgilash | 110mmx110mm | 110mmx110mm | 110mmx110mm |
Belgilangan chuqurlik | ≤1,2 mm | ≤1.5mm | ≤2.0 mm |
Chiziqli tezlikni belgilash | ≤14000mm / s | ≤14000mm / s | ≤14000mm / s |
Minimal chiziq kengligi | 10um | 10um | 10um |
Eng kam belgi | 0.15mm | 0.15mm | 0.15mm |
Qayta takrorlash | ± 0,005 mm | ± 0,005 mm | ± 0,005 mm |
Quvvat iste'moli | ≤600W | ≤800W | ≤1000W |
Xizmatga yaroqsiz vaqt | 100000 soat | 100000 soat | 100000 soat |
Kirish kuchi | Faqatgina o'zgarishlar110VAC / 220VAC / 50-60Hz | ||
Sovutish usuli | Havoni sovutish | Havoni sovutish | Havoni sovutish |
